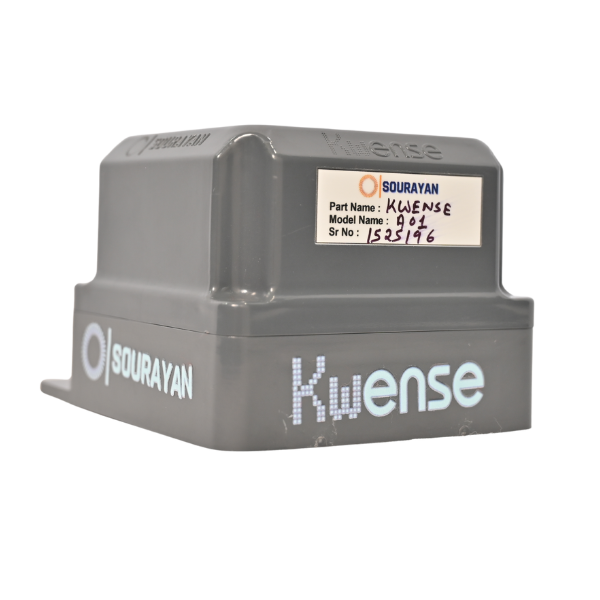

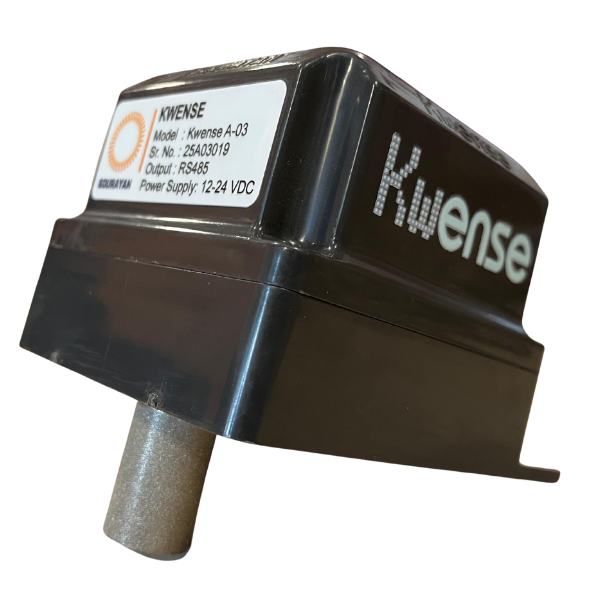

KWENSE-Rooftop Weather Sensor
The Sourayan Kwense-Advanced sensor is designed for kW Solar Power Plants, offering continuous measurement of Solar Radiation, Air Temperature, Relative Humidity, Barometric Pressure, and Module Temperature, with optional Wind Speed and Wind Direction.
Ideal for rooftop solar monitoring, it ensures accuracy, long-term stability, and low power consumption, making it suitable for remote and harsh environments. The sensor features inbuilt roll and tilt angles for improved precision and transmits data via MODBUS 485 for easy integration with third-party devices.
The Sourayan Kwense-Advanced sensor is designed for kW Solar Power Plants, offering continuous measurement of Solar Radiation, Air Temperature, Relative Humidity, Barometric Pressure, and Module Temperature, with optional Wind Speed and Wind Direction.
Ideal for rooftop solar monitoring, it ensures accuracy, long-term stability, and low power consumption, making it suitable for remote and harsh environments. The sensor features inbuilt roll and tilt angles for improved precision and transmits data via MODBUS 485 for easy integration with third-party devices.
Key Feature
-
Every sensor is individually calibrated and comes with
a calibration certificate - Calibration certificate traceable to NABL accredited lab
- Specifically designed for rooftop solar power plant
- wide input power from 9V to 32V DC
- MODBUS 485 output.
-
Available in different packages to suite customer
requirement - Best in Class Accuracy for rooftop applications.
- First in class with roll and tilt angle
- Low power consumption.
- Outdoor application.
Specification
General Information
Operating Range —————————————– -200 to +700C
Protection Class —————————————– IP65
Protection —————————————– ESD: 8KV; EFT: 2KV; Surge: 1KV
Output —————————————– MODBUS 485
Power Requirement —————————————– Voltage: 9 to 32V DC, Current: < 500mA
Ordering Info
| Description | Model No. |
|---|---|
| Kwense-A01 | Silicon type irradiation, with MODBUS 485 output and 10mtrs cable |
| Kwense-A02 | Silicon type irradiation, and Module temperature (3mtrs cable) with MODBUS 485 output and 10mtrs cable |
| Kwense-A03 | Silicon type irradiation, Module temperature (3mtrs cable), Air Temperature, Relative Humidity and Barometric pressure with MODBUS 485 output and 10mtrs cable |
Options to connect Sourayan Make Sensor Wind Speed (WS-501) and Wind Direction (WD-501) with the Kwense-A03 model or any other sensors having a 4-20 mA output. Also, there is the option to connect the Sourayan rain bucket with the Kwense-A03 on a pre-order basis.
